| Installation Type | • Wall • Ceiling • T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.) |
| Weight without packaging [kg(lb)] | 0.47 kg (1.04 lb) |
| Weight with packaging [kg(lb)] | 0.69 kg (1.52 lb) |
| Maximum power consumption [W] | 13.60 W |
| Power supply mode | • DC adapter • PoE |
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ?? 10% PoE: 802.3at/af |

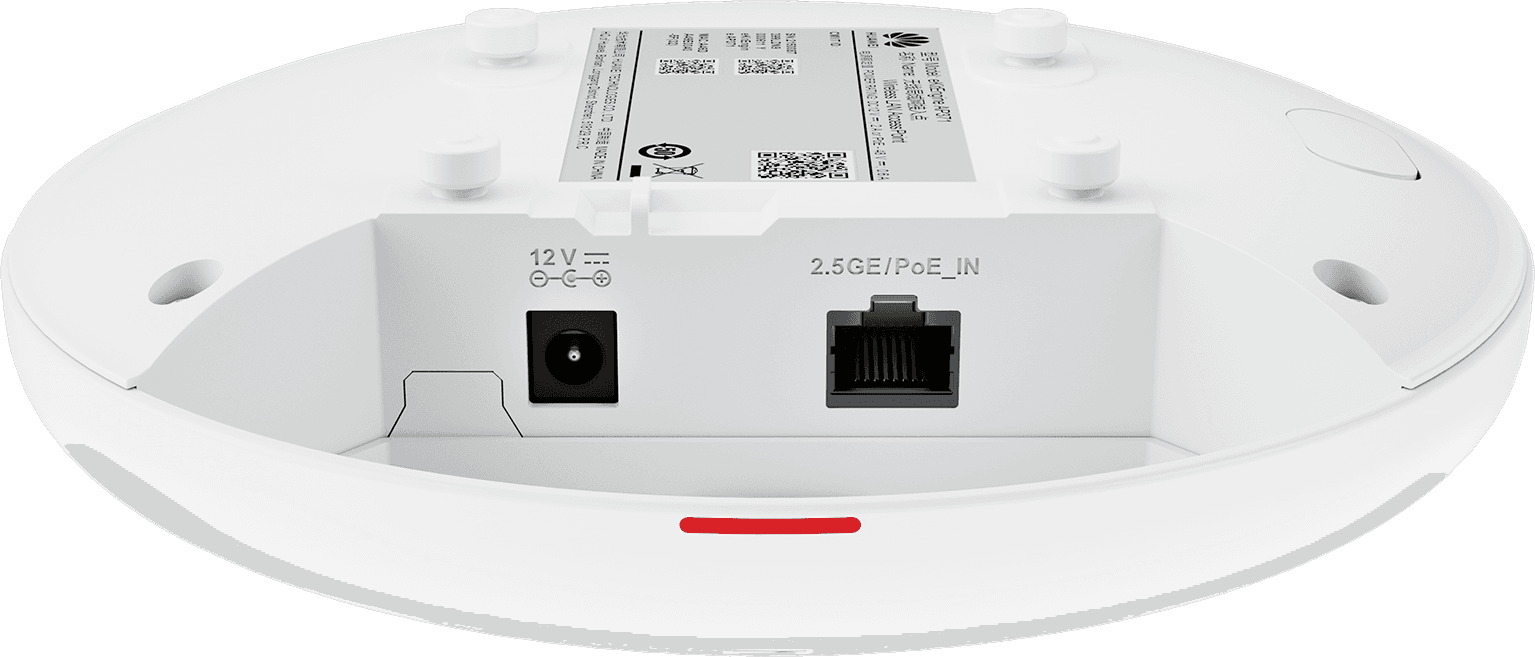

| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing |
| Long-term operating temperature [??C(??F)] | ???10??C to +50??C (14??F to 122??F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1??C [1.8??F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [??C(??F)] | ???40??C to +70??C (???40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | ???60 m to +5000 m (???196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| Radio number | 2 |
| Operating frequency band | • 2.4GHz • 5GHz |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BLE: 4 dBi (peak gain) |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| Signal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| Installation Type | • Wall • Ceiling • T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.) |
| Weight without packaging [kg(lb)] | 0.47 kg (1.04 lb) |
| Weight with packaging [kg(lb)] | 0.69 kg (1.52 lb) |
| Maximum power consumption [W] | 13.60 W |
| Power supply mode | • DC adapter • PoE |
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ?? 10% PoE: 802.3at/af |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing |
| Long-term operating temperature [??C(??F)] | ???10??C to +50??C (14??F to 122??F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1??C [1.8??F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [??C(??F)] | ???40??C to +70??C (???40??F to +158??F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | ???60 m to +5000 m (???196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| Radio number | 2 |
| Operating frequency band | • 2.4GHz • 5GHz |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BLE: 4 dBi (peak gain) |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| Signal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
