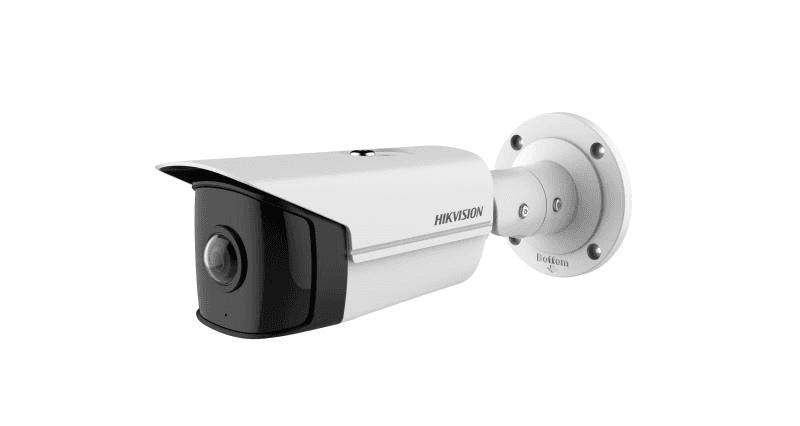

Home/Hikvision 4 MP Super Wide Angle Fixed Bullet IP Ca...
Delivery to
FREE scheduled delivery as soon as
Sold and shipped by: Adarc computers
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | ICR Cut |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture. Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email |
| Angle Adjustment | Pan: 0?? to 360??, tilt: 0?? to 90??, rotate: 0?? to 360?? |
| Lens | Focus: Fixed Lens Type & FOV: 1.68mm @ F2.0, horizontal FOV 180??, vertical FOV 101??, diagonal FOV 180?? Aperture: F2.0 Lens Mount: M12 DORI: Detect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m |
| Illuminator | IR Range: 20 m Wavelength: 850nm Smart Supplement Light: Yes |
| Video | Max. Resolution: 2688 ?? 1520 Main Stream: 50Hz: 25fps (2688 ?? 1520, 2304 ?? 1296, 1920 ?? 1080, 1280 x 720) 60Hz: 24fps (2688 ?? 1520), 30fps (2304 ?? 1296, 1920 ?? 1080, 1280 x 720) Sub Stream: 50Hz: 25fps (640 ?? 480, 640 ?? 360, 320 ?? 240); 60Hz: 30fps (640 ?? 480, 640 ?? 360, 320 ?? 240) Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Stream Type: Main stream, Sub-stream Scalable Video Coding (SVC): H.264, H.265 Region Of Interest (ROI): 1 fixed region for main stream and sub-stream |
| Network | Simultaneous Live View: Up to 6 channels API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/Host: Up to 32 users, 3 levels: Administrator, Operator and User Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network Storage: micro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome41.0+, Firefox30.0+ |
| Image | Day/Night Switch: Day, Night, Auto, Schedule Image Enhancement: BLC;HLC;EIS;Lens Distortion;3D DNR Image Settings: Saturation;brightness;contrast;sharpness;rotate mode;white balance;AGC SNR: ??? 50 dB Privacy Mask: 4 regions of privacy mask |
| Interface | On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB Hardware Reset: Yes Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection |
| Web Client Language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Privacy mask; heart; mirror; flash log; password reset via e-mail; pixel counter |
| Storage Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ?? 25%; PoE: 802.3af, Class 3 |
| Power Consumption And Current | 12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W |
| Power Interface | ??5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | Camera: ??105 ?? 278 mm (??4.1??? ?? 10.9???) |
| Package Dimension | 386 ?? 156 ?? 155 mm (15.20??? ?? 6.14??? ?? 6.10???) |
| Camera Weight | 570 g (1.26 lb.) |
| With Package Weight | 760 g (1.68 lb.) |
| Approval | Class B |
| Protection | IP67 |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
