| Model | Pro WS Z890-ACE SE |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | Supports Intel?? Core??? Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel?? Z890 Chipset |
| Memory |
4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports DIMM Fit, DIMM Flex, Intel?? XMP, ASUS AEMP III |
| Graphics |
1 x HDMI??? port (4K@60Hz, HDMI 2.1) 1 x Intel?? Thunderbolt??? 4 port (USB Type-C??, supports DisplayPort and Thunderbolt??? video outputs) 1 x VGA port from AST2600 |
| Expansion Slots |
Intel?? Core??? Ultra Processors (Series 2): - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel?? Z890 Chipset: - 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage |
Total 4 x M.2 slots, 8 x SATA 6Gb/s ports CPU: - M.2_1: 2260/2280 (PCIe 5.0 x4) - M.2_2: 2242/2260/2280 (PCIe 4.0 x4) Chipset: - M.2_3: 2242/2260/2280 (PCIe 4.0 x4) - M.2_4: 2280 (PCIe 4.0 x4) - SlimSAS_1 (PCIe 4.0 x4 or up to 4 SATA devices via cable) |
| Ethernet |
1 x Marvell?? AQtion 10Gb Ethernet 1 x Intel?? 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet (for AST2600) |
| USB Ports |
Rear: 8 ports - 1 x Thunderbolt??? 4 (USB Type-C??) - 1 x USB 20Gbps (USB Type-C??) - 6 x USB 10Gbps (Type-A) Front: 7 ports - 1 x USB 20Gbps (Type-C??) - 1 x USB 5Gbps header (supports 2 USB 5Gbps ports) - 2 x USB 2.0 headers (supports 4 USB 2.0 ports) |
| Audio |
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front/rear headphone outputs - Internal amplifier for enhanced audio quality - 120 dB SNR playback, 113 dB SNR recording (Line-in) - Supports 32-Bit/192 kHz playback |
| Back Panel I/O Ports |

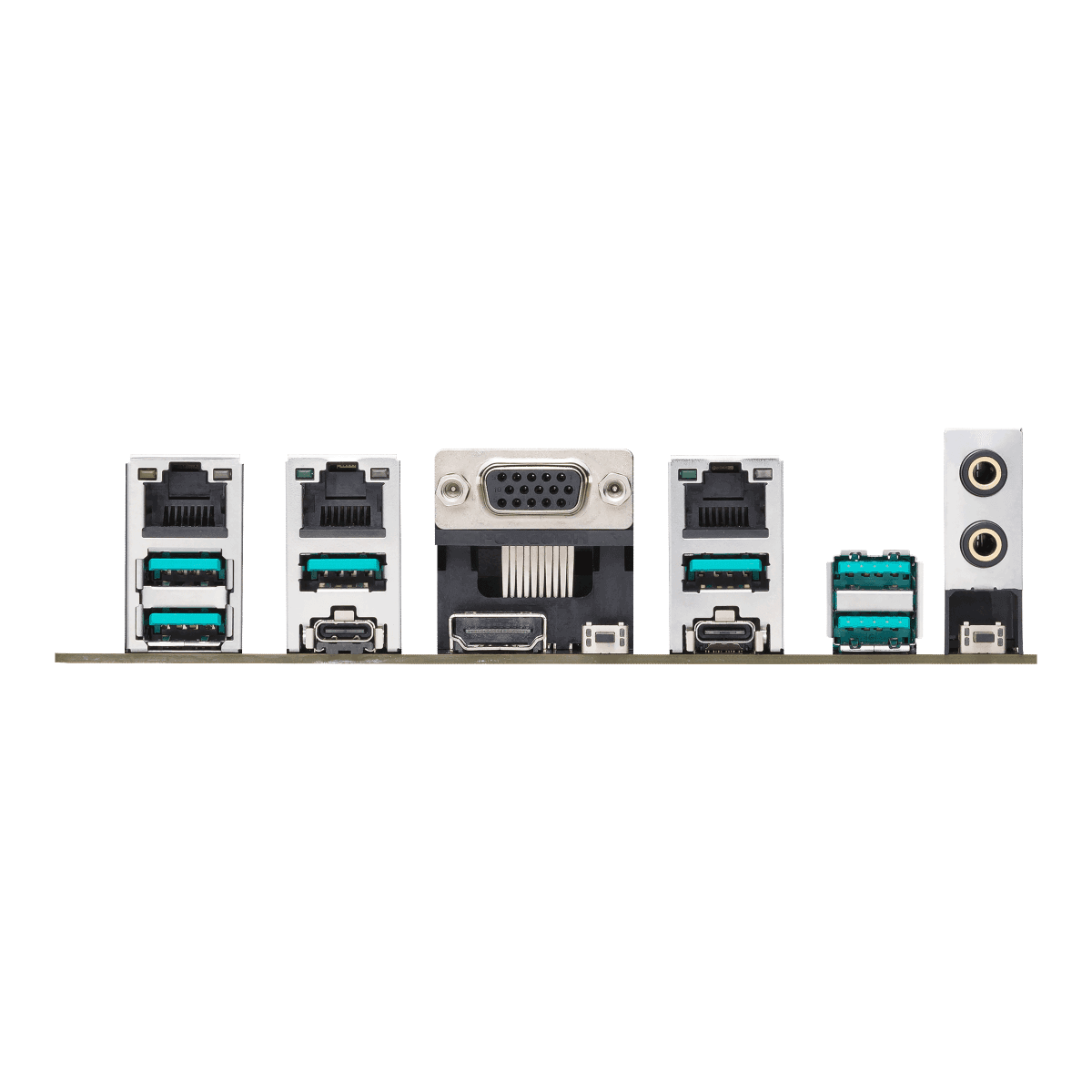

- 1 x Thunderbolt??? 4 USB Type-C?? port - 1 x USB 20Gbps (USB Type-C??) - 6 x USB 10Gbps (Type-A) - 1 x HDMI??? port - 1 x Marvell?? AQtion 10Gb Ethernet - 1 x Intel?? 2.5Gb Ethernet - 1 x Realtek 1Gb Ethernet - 2 x Audio jacks - 1 x BIOS FlashBack??? button - 1 x Clear CMOS button |
| Internal I/O Connectors |
- 1 x 4-pin CPU Fan header - 1 x 4-pin CPU OPT Fan header - 5 x 4-pin Chassis Fan headers - 1 x W_PUMP+ header |
| Power Related |
- 1 x 24-pin Main Power connector - 2 x 8-pin +12V CPU Power connectors |
| Special Features |
- ASUS 5X PROTECTION III (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot Core+) - ASUS Q-Design (M.2 Q-Latch, Q-Release Slim, Q-Code, Q-LED, Q-Slot, Q-DIMM) - ASUS Thermal Solution (M.2 heatsink, VRM heatsink) - ASUS EZ DIY (BIOS FlashBack??? button, Clear CMOS button) |
| Software Features |
- ASUS Armoury Crate (Fan Xpert 4, Power Saving) - ASUS DriverHub, TurboV Core, ASUS CPU-Z - Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial) |
| UEFI BIOS |
- AI Overclocking Guide - ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, MyHotkey) |
| Remote Management Features |
- ASUS Control Center Express (ACCE) - BMC LED Design, BMC Switches, Debug Headers, VGA Switch |
| BIOS | 256 Mb Flash ROM UEFI AMI BIOS (text-based) |
| Accessories |
- 2 x SATA 6Gb/s cables - 1 x I/O shield - 2 x M.2 Q-Latch packages - 1 x Q-connector - 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | ATX (12 x 9.6 in / 30.5 x 24.4 cm) |
